Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

ब्रांड नाम: PFM
मॉडल संख्या: पीएफएम-सीबी356
एमओक्यू: 1 मीटर
कीमत: बातचीत योग्य
भुगतान की शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन ,, पेपैल, ट्रेड एश्योरेंस
आपूर्ति करने की क्षमता: प्रति माह 300 मीटर
विस्तृत जानकारी
उत्पत्ति के प्लेस:
हेबेई, चीन
प्रमाणन:
SGS
सामग्री:
स्टेनलेस स्टील, कार्बन स्टील
समतल तार:
25.4 मिमी
रॉड पिच:
25.4 मिमी
रॉड व्यास:
5.0 मिमी
फ्लैट तार का आकार:
1.2 मिमी*14.1 मिमी
नमूना:
उपलब्ध
पैकेजिंग विवरण:
प्लास्टिक बैग अंदर और प्लाईवुड मामले बाहर या अपनी जरूरत के अनुसार।
प्रमुखता देना:

stainless steel 316 conveyor belt

,

honeycomb mesh conveyor belt

,

heavy duty wire mesh belt

उत्पाद का वर्णन

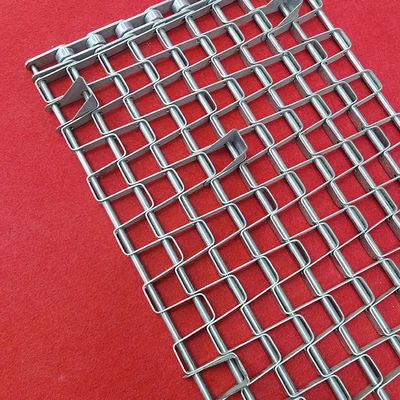

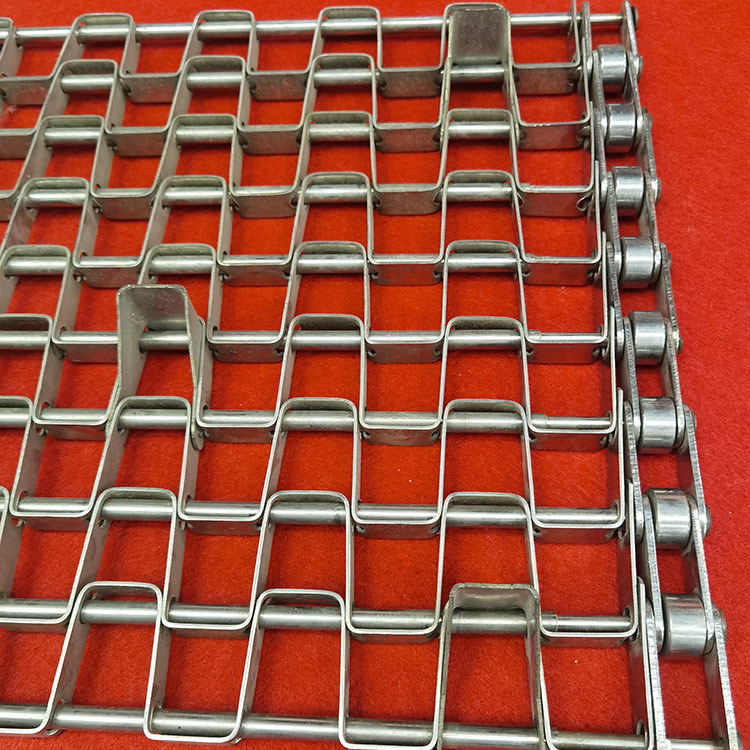

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle
Description
Flat wire conveyor belt is also called honeycomb conveyor belt or flat plate conveyor belt. The flat plates are arranged in the form of lattice and joined with straight rods. Customers can request chains, side plates, or both attached to the belt's sides. The side plates prevent goods from falling, while chains drive the belt.
Specification
Material stainless steel, carbon steel
Width customized
Length customized
Flat wire pitch 12.7, 14, 15, 16, 18, 24, 25.4 mm
Rod pitch 13.7, 19.05, 25.4, 27 mm
Rod diameter 3.0, 4.0, 5.0 mm
Flat wire size 1.2x9.5, 1.2x14.1, 1.5x12.7, 1.5x14.1 mm
Features
  • Positive sprocket drive ensures stable running
  • Larger open area provides high air permeability
  • Easy to wash and maintain
  • Smooth surface carries unstable products securely
  • Suitable for curved conveyor applications (CFW)
Applications
  1. Conveyor machines
  2. Frying facilities
  3. Annealing furnaces
  4. Refrigeration facilities
  5. Cleaning machines
  6. Drying ovens
  7. Food transport
  8. Baking
  9. Cooling and freezing
  10. Steaming and drying
